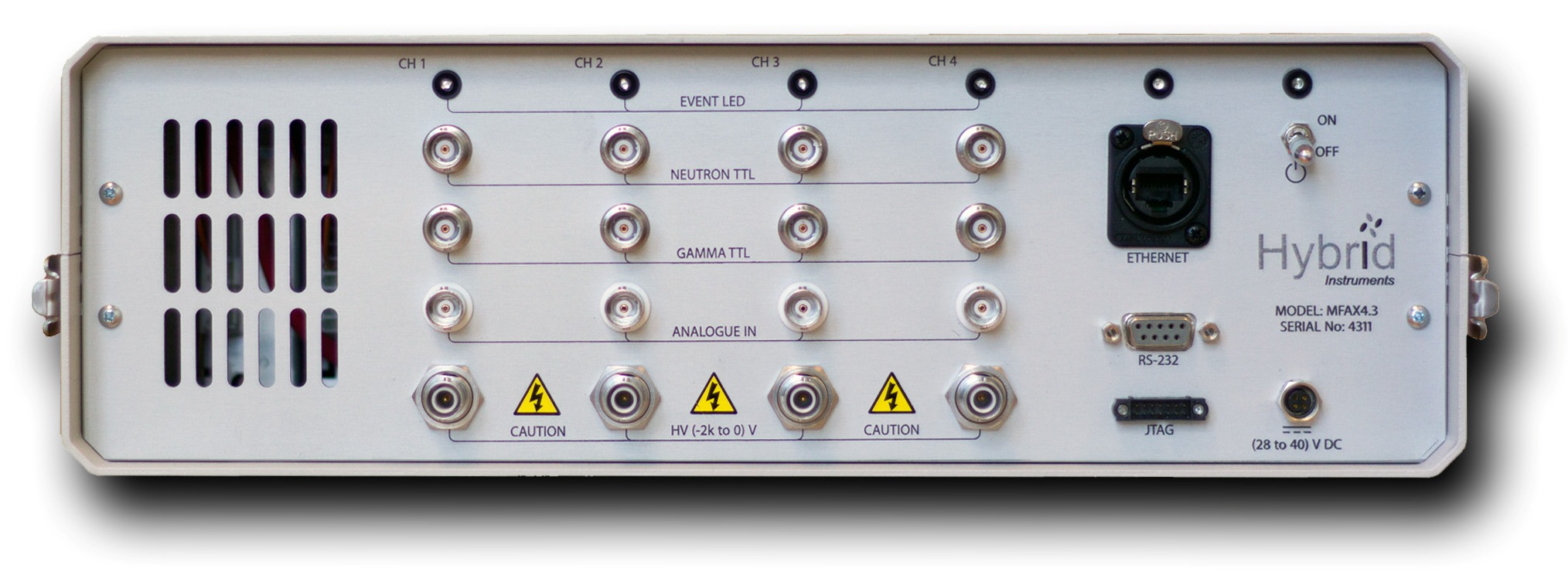

This extremely versatile digital analyser offers a complete real-time Pulse Shape Discrimination (PSD) solution for scintillation detectors with Multi-Channel Analyser (MCA) Pulse Height Spectra (PHS) analysis. The analyser has applications in coincidence and multiplicity counting, security and safeguards, mixed-field assay and imaging.
The analyser can function with or without a host PC. In stand-alone mode, separate digital TTL outputs for gamma and neutron events are provided from each channel for analysis using secondary instrumentation such as a coincidence counter. These outputs have a high real-time throughput, and are synchronised in time with the incident event.
Connection to a PC or tablet via either Ethernet or Wi-Fi enables the use of a Graphical User Interface (GUI) where system configuration, auto-calibration and the analysis of PSD and PHS data can be performed. The GUI supports touch screen functionality and scales appropriately to the number of MFA devices detected on the network.
An auto-calibration feature provides a convenient means for response matching detectors by automatically fine tuning the dedicated HV supplies to align the PHS spectra obtained using a calibration source (typically Cs-137).
500 MSa/s sampling rate
3 Mpps PSD throughput
Time correlated TTL outputs
Fully user configurable
EJ301, EJ309, EJ299 and CLYC compatibility tested.
28 V to 40 V DC, 65 W
35 cm x 26 cm x 11 cm
High voltage max.
-2000 V DC
Output voltage control
via PC or tablet based graphical user interface
Operating: 00C to 500C
0.001% for 0% to 100% load change
50 ppm/Hr, 200 ppm/8Hr
120% of max. output current, 2 mA
Full scale range
20 mVpp to 600 mVpp,
Short circuit and arc protected
user configurable VGA
Digital TTL output
Onboard PLL using internal oscillator
3.8 V, high
Ethernet or Wi-Fi (<5 kpps), TTL (<3.3 Mpps),
0 V, low
serial (used for debugging)
32 Mbit EEPROM
Max. PSD throughput
Over limit diode protected
